Seed Shuttle

Seed Shuttle Logo

The Seed Shuttle brand of seed tenders is the only tender on the market with non-Corrosive poly tanks. Seed Shuttle comes in three different sizes and three different Configurations. Customers can choose any configuration between, just the tender to be put on your trailer, seed tender on our trailer with bumper hitch, to the seed tender on our trailer with a gooseneck hitch. The sizes are measured in Units with three different models available. The smallest unit machine is the SS290 rated at 290 units, next is the all new SS400 rated at 400 units, and the largest the SS500 rated at 500 units.

Seed Shuttle Group

Standard Features

  • 180° Conveyor Swivel with both side and rear unloading positions
  • Wireless Remote with infinite belt speed controls
  • 8" x 24' Conveyor for extra reach for center-fill planters
  • 10" wide all rubber belt with 1,800 lbs per minute capacity
  • Enclosed conveyor belt return
  • Conveyor transport lock for safety
  • 3-Piece telescoping downspout

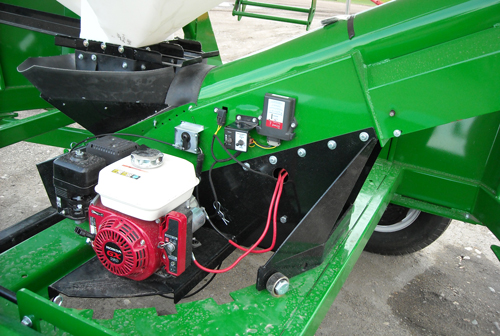

  • 5.5 HP Honda motor with electric start and centrifugal clutch
  • 18" wide catwalk with side ladder access
  • Heavy duty powder coated frame

Optional Features

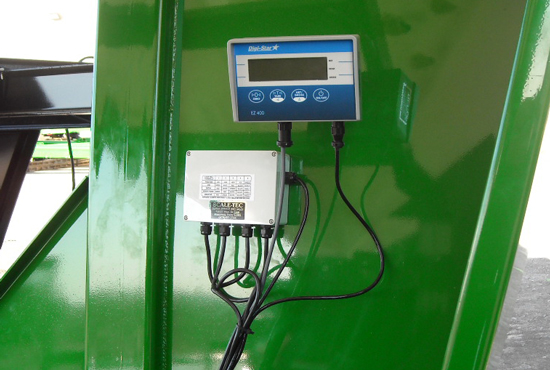

  • Weight Scale Kit
  • Liquid Conversion Kit
  • Inoculator Kit
  • Stainless Steel Conveyor & Slide Gates

Seed Shuttle 290

SS290 Standard Features

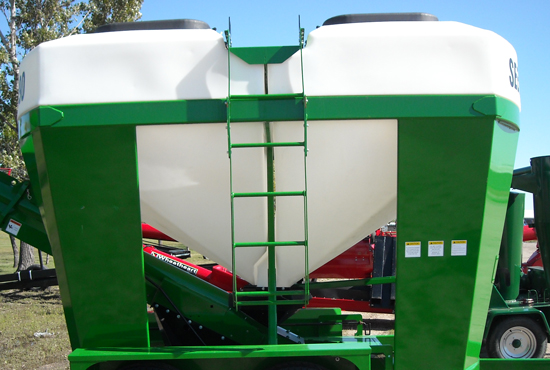

  • (2) 145 unit poly tanks with independent slide controls
  • (2) 48" x 27" sealed lid openings
  • 17 conveyor locking positions

SS290 Optional Features

  • Ball Trailer Hitch with (2) 7,000 lb torsion axles
  • Gooseneck Hitch with (2) 7,000 lb torsion axles

Seed Shuttle 400

SS400 Standard Features

  • (2) 200 unit poly tanks with independent slide controls
  • (2) 40" x 40" sealed lid openings
  • 15 conveyor locking positions

SS400 Optional Features

  • Self-Loading conveyor
  • 6 & 7 function wireless remote kit
  • Pintle Bumper Hitch with (3) 7,000 lb torsion axles
  • Gooseneck Hitch with (3) 7,000 lb torsion axles

Seed Shuttle 500

SS400 Standard Features

  • (2) 250 unit poly tanks with independent slide controls
  • (2) 40" x 40" sealed lid openings
  • 15 conveyor locking positions

SS400 Optional Features

  • Self-Loading conveyor
  • 6 & 7 function wireless remote kit
  • Pintle Bumper Hitch with (3) 10,000 lb torsion axles
  • Gooseneck Hitch with (3) 10,000 lb torsion axles
  • Gooseneck Hitch with (2) 12,000 lb spring axles


Literature

Seed Shuttle Brochure
(PDF, 1.8 MB)

Manuals

2016 290 Owners Manual
(PDF, 4.8 MB)
2016 400-500 Owners Manual
(PDF, 5.1 MB)
